K-Series K24 Timing Chain Guide Super Combo

The Drag Cartel K-Series K24 Timing Chain Guide Super Combo is the ultimate all-in-one timing upgrade package for K24 block and K20A2 head builds. This combo bundles the most critical timing chain components into one kit, ensuring maximum reliabilit

K Series Timing Chain Guide Combo

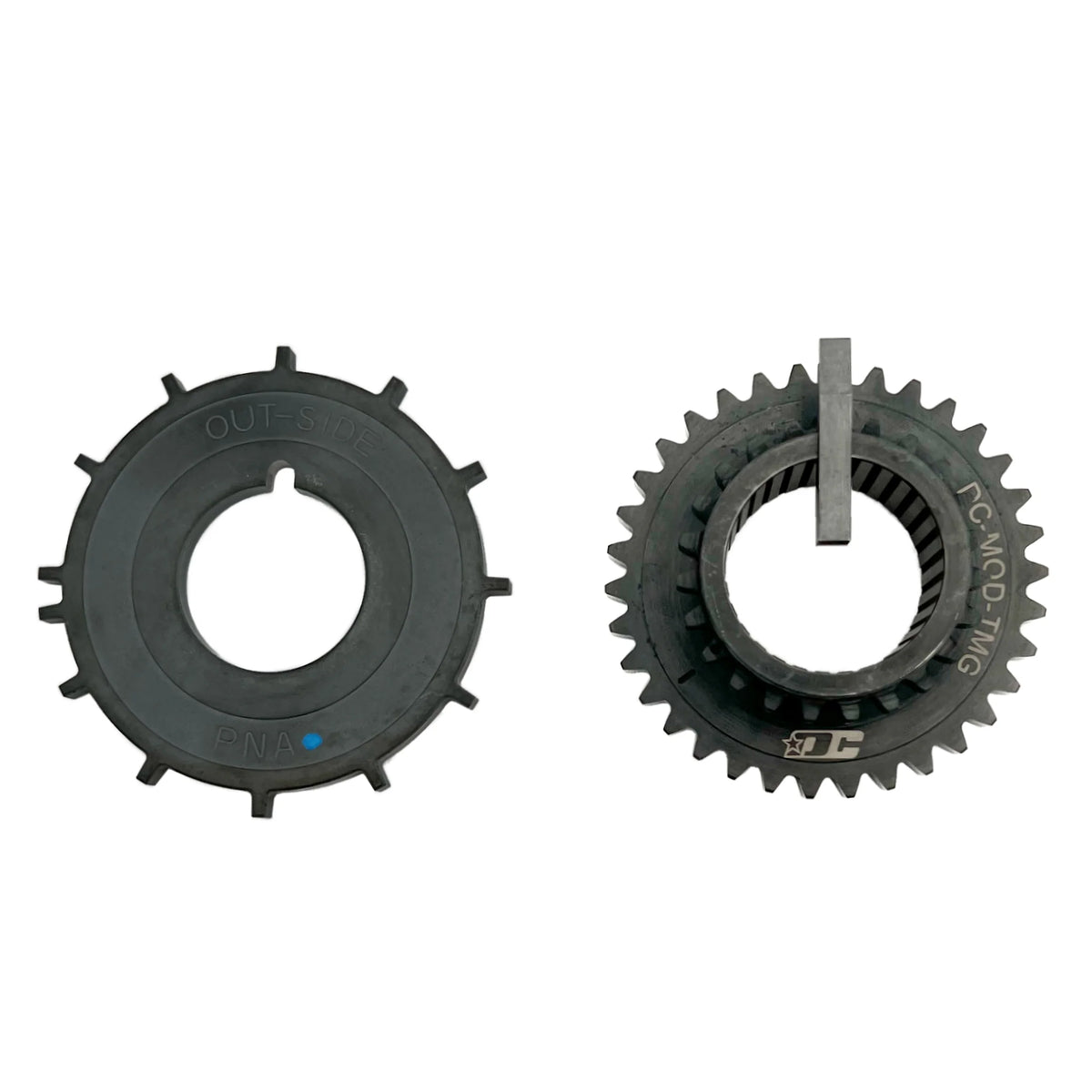

Modified Crank Timing Gear - Factory K-Series Timing Chain Gears on your performance built turbocharged or all-motor applications have a higher risk of the timing chain gear to break its positioning dowel pin causing your engine to lose timing and potentially do major damage to the engine in this occurrence.

The Modified Crank Timing gear solves this problem by modifying the factory gear to be locked in place using a crank key-way.

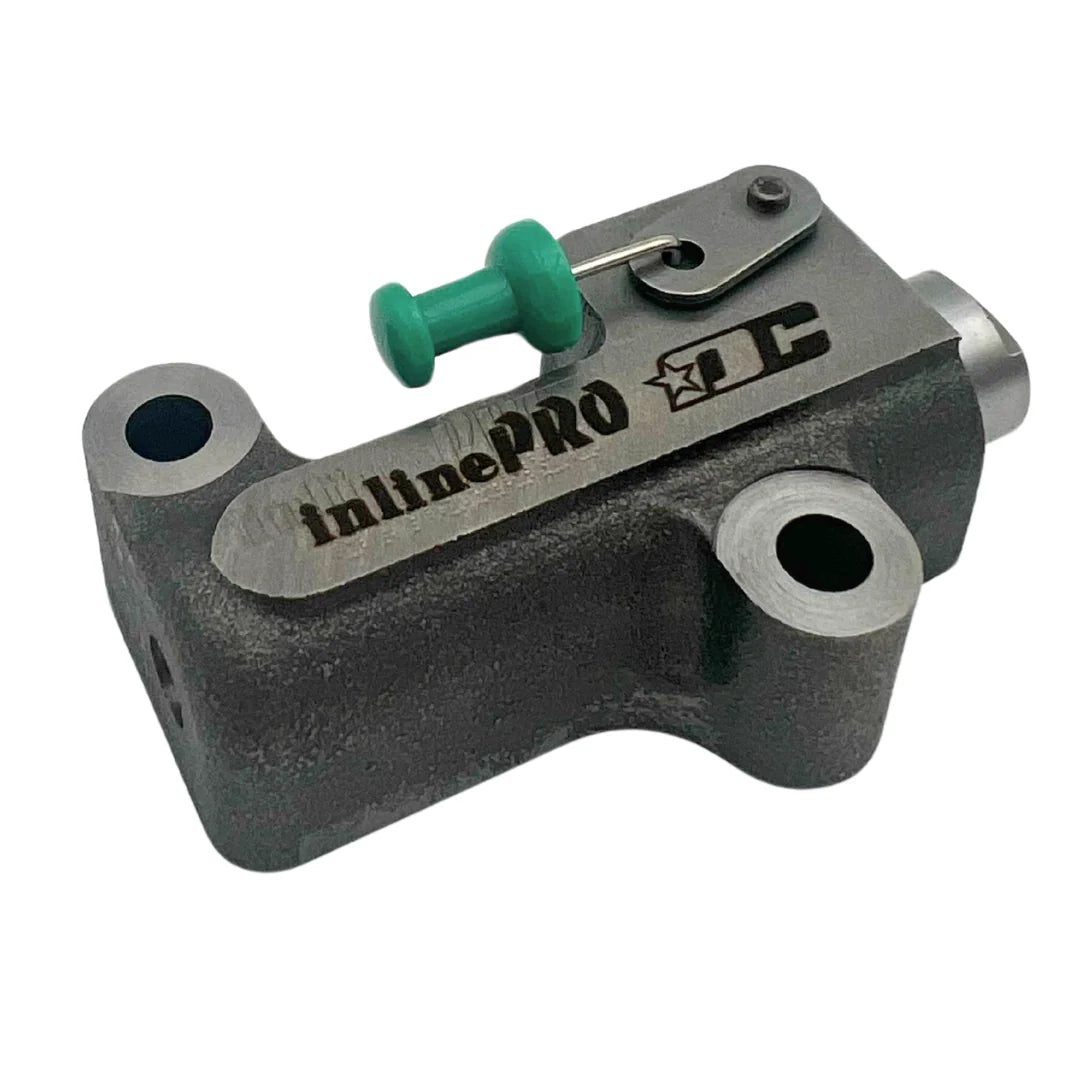

Timing Chain Tensioner - Constructed of Billet Aluminum vs the stock plastic, eliminates timing variation under high RPM and load. Reduces flex for rock solid timing and consistent performance. Does not soften with heat. Works with all other factory and aftermarket components. BLACK Anodized for wear and corrosion resistance.
Replaceable wear strips. Simply the strongest and most precise timing chain system possible.

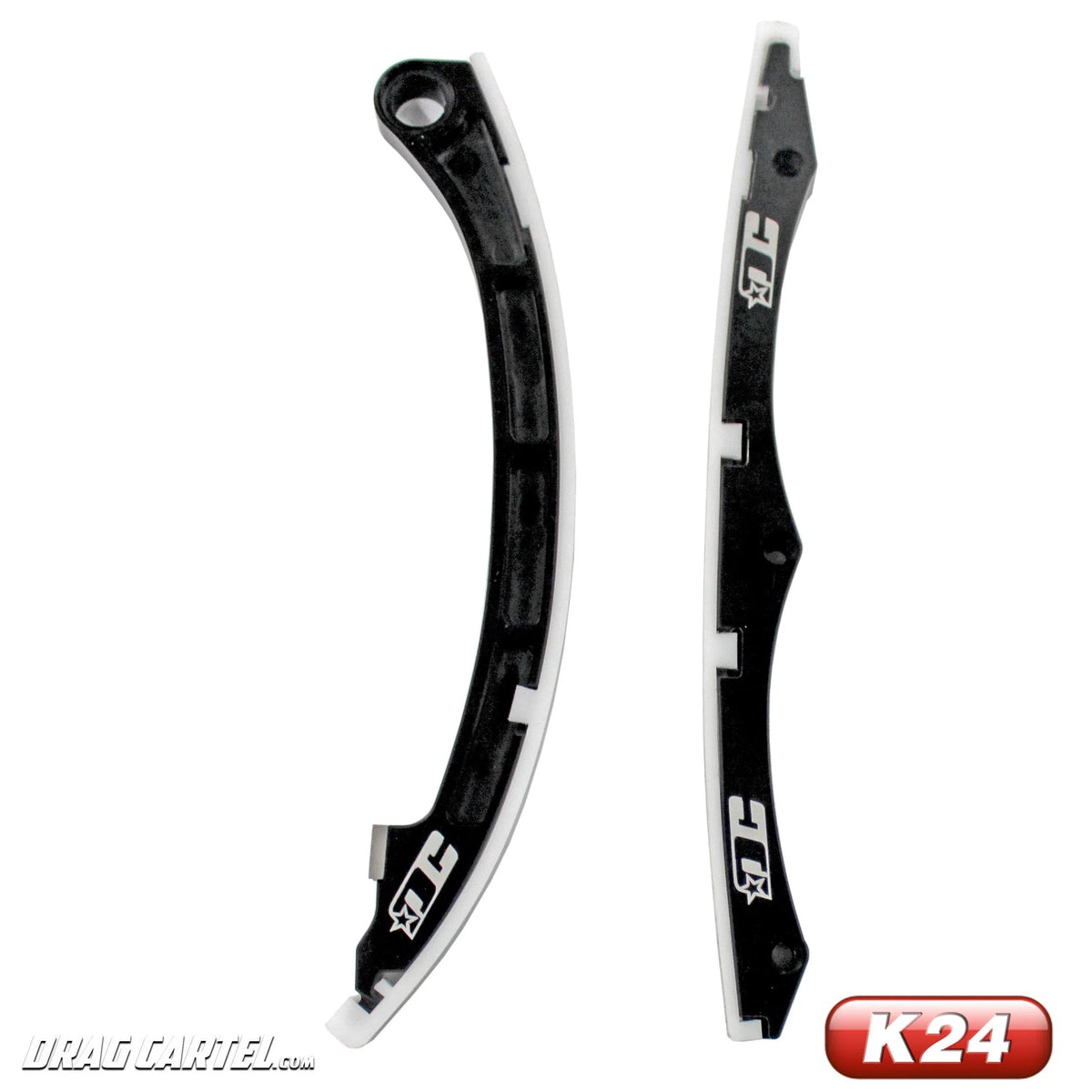

Chain Guide Kit -

NOT SUITABLE FOR USE IN ROAD-RACE AND OR ENDURANCE APPLICATIONS

Constructed of Billet Aluminum vs the stock plastic, eliminates timing variation under high RPM and load. Reduces flex for rock solid timing and consistent performance. Does not soften with heat. Works with all other factory and aftermarket components. BLACK Anodized for wear and corrosion resistance.
Replaceable wear strips. Simply the strongest and most precise timing chain system possible.

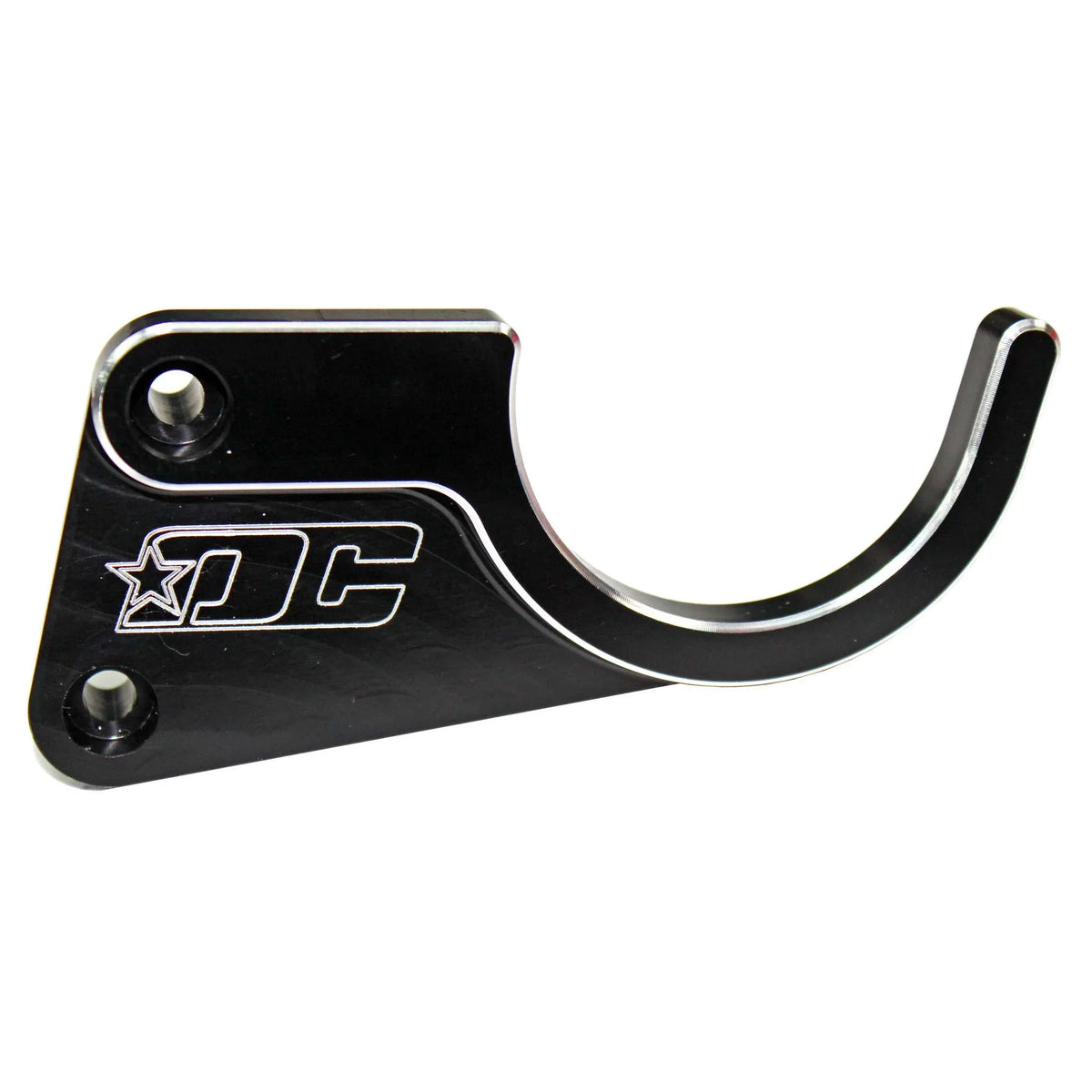

Lower Timing Chain Guide - Provides Two Functions:
1. Upgrades the OEM lower chain guide.
2. Prevents timing chain slippage off the crank pulley chain gear when performing a cam swap.
If you're a K-Series head, you know about the keeping the timing chain held up when performing a cam swap and how much of a pain it is when it does slip!

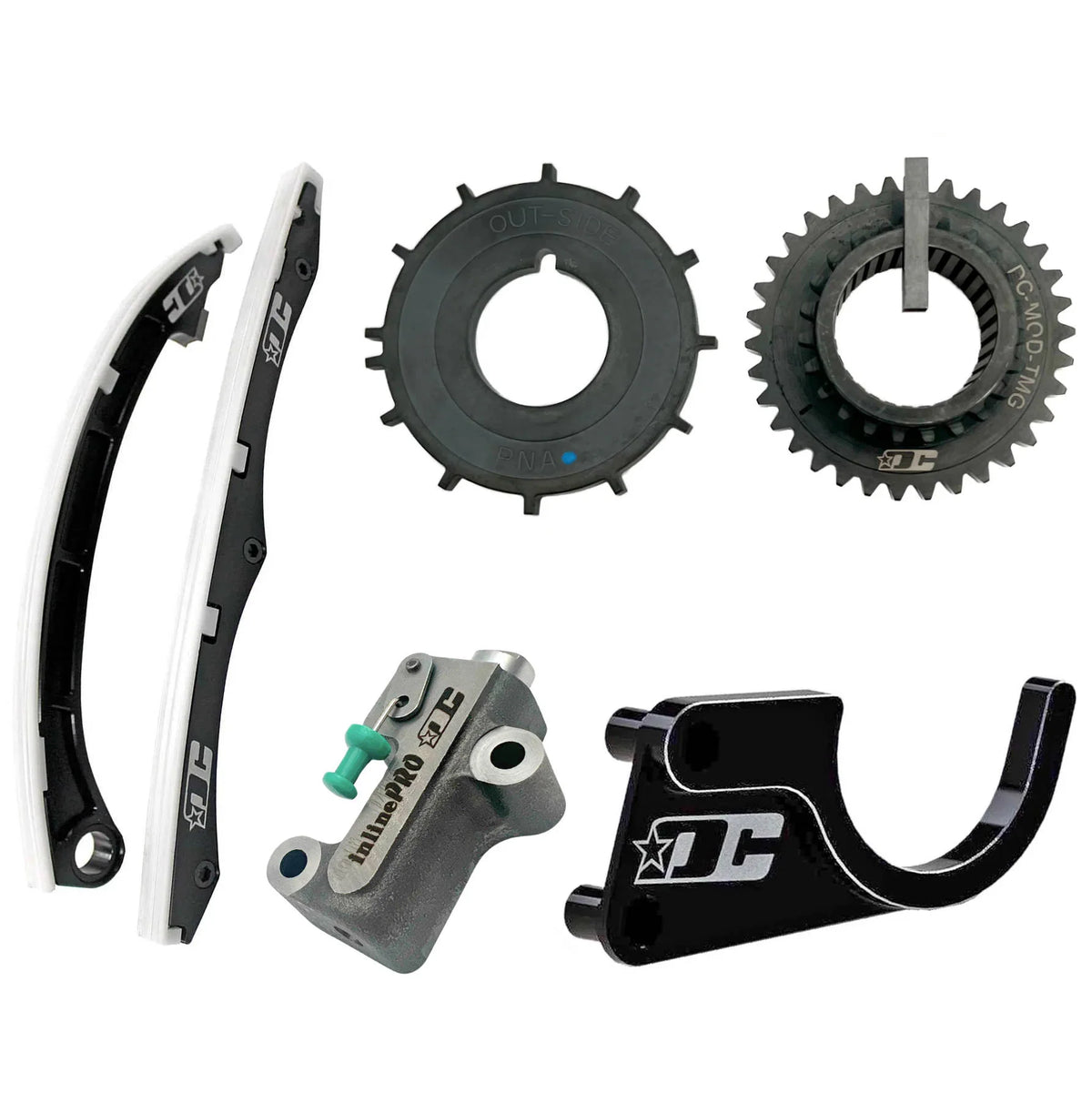

K Series Chain Guide Combo:
• Modified Crank Timing Gear
• Timing Chain Tensioner
• Chain Guide Kit
• Lower Timing Chain Guide

Application:

Engine and Application:
K-SERIES ENGINE: K24A2 K24A4 & K24Z7 Fitment

Fitment:

Acura
02-06 Acura RSX Base 2.0 K20A3
02-04 Acura RSX Type S 2.0 K20A2
05-06 Acura RSX Type S 2.0 K20Z1
04-08 Acura TSX 2.4 K24A2
Honda
03-05 Honda Accord 2.4 K24A4
06-07 Honda Accord 2.4 K24A8
02-05 Honda Civic Si 2.0 K20A3
06-11 Honda Civic Si 2.0 K20Z3
02-06 Honda CRV 2.4 K24A1
03-06 Honda Element 2.4 K24A4
07-11 Honda Element 2.4 K24A8

y and performance for high-output K-Series builds.

Kit Includes

• DC-LWR-GUD — K-Series Lower Timing Chain Guide
• DC-CHN-GUD — K-Series Billet Chain Guide
• DC-MOD-TMG — Modified Crank Timing Gear
• IP-KRTCT-K24 — K24 Race Timing Chain Tensioner

Features

• Complete timing system upgrade in one package
• Compatible with K24 block / K20A2 head swap configurations
• Eliminates factory timing chain weak points
• Ideal for boosted and high-RPM N/A applications

Brand: Drag Cartel / InlinePRO
SKUs: DC-LWR-GUD, DC-CHN-GUD, DC-MOD-TMG, IP-KRTCT-K24
Compatible with: K24 Block / K20A2 Head
Condition: New
